using DevExpress.XtraGrid.Views.Grid;
using DevExpress.XtraGrid.Views.Base;
using DevExpress.XtraGrid.Views.Grid.ViewInfo;
using System.Drawing.Drawing2D;

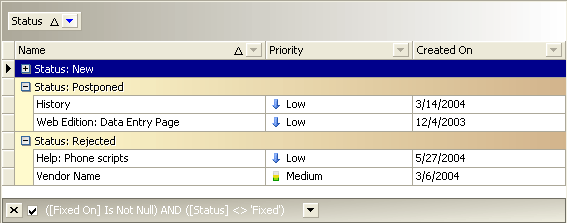

private void gridView1_CustomDrawGroupRow(object sender, RowObjectCustomDrawEventArgs e) {
   GridView view = sender as GridView;

   GridGroupRowInfo groupRowInfo = e.Info as GridGroupRowInfo;
   Rectangle groupRowBounds = groupRowInfo.DataBounds;
   Rectangle expandButtonBounds = groupRowInfo.ButtonBounds;
   Rectangle textBounds = e.Bounds;
   textBounds.X = expandButtonBounds.Right + 4;

   //A brush for the group row.
   Brush brush = e.Cache.GetGradientBrush(groupRowBounds, Color.LemonChiffon,
     Color.Tan, LinearGradientMode.Horizontal);
   //A brush for the region containing the expand button.
   Brush brushImage = Brushes.LemonChiffon;
   //Brushes to draw the text in the group row
   Brush brushText = Brushes.Black, brushTextShadow = Brushes.White;
   if(e.RowHandle == view.FocusedRowHandle) {
      brush = brushTextShadow = Brushes.DarkBlue;
      brushText = Brushes.White;
   }

   //Fill the rectangle of the group row without the expand button
   e.Graphics.FillRectangle(brush, groupRowBounds);
   //Draw a custom expand button
   ImageList iml = imlCustomDrawImages;
   e.Graphics.DrawImageUnscaled(iml.Images[(view.GetRowExpanded(e.RowHandle) ? 1 : 0)],
     expandButtonBounds);
   //Draw the group row text
   string s = view.GetGroupRowDisplayText(e.RowHandle);
   e.Appearance.DrawString(e.Cache, s, new Rectangle(textBounds.X +1, textBounds.Y + 1,
     textBounds.Width, textBounds.Height), brushTextShadow);
   e.Appearance.DrawString(e.Cache, s, textBounds, brushText);
   //Prevent default painting
   e.Handled = true;
}

private void gridView1_GroupLevelStyle(object sender, GroupLevelStyleEventArgs e) {
   //Specify the back color for the group indent panel
   e.LevelAppearance.BackColor = Color.LemonChiffon;
}

Imports DevExpress.XtraGrid.Views.Base
Imports DevExpress.XtraGrid.Views.Grid
Imports DevExpress.XtraGrid.Views.Grid.ViewInfo
Imports System.Drawing.Drawing2D

Private Sub GridView1_CustomDrawGroupRow(ByVal sender As Object, _
ByVal e As RowObjectCustomDrawEventArgs) Handles GridView1.CustomDrawGroupRow
   Dim view As GridView = CType(sender, GridView)

   Dim groupRowInfo As GridGroupRowInfo = e.Info
   Dim groupRowBounds As Rectangle = groupRowInfo.DataBounds
   Dim expandButtonBounds As Rectangle = groupRowInfo.ButtonBounds
   Dim textBounds As Rectangle = e.Bounds
   textBounds.X = expandButtonBounds.Right + 4

   'A brush for the group row.
   Dim brush As Brush = e.Cache.GetGradientBrush(groupRowBounds, Color.LemonChiffon, _
     Color.Tan, LinearGradientMode.Horizontal)
   'A brush for the region containing the expand button.
   Dim brushImage As Brush = Brushes.LemonChiffon
   'Brushes to draw the text in the group row
   Dim brushText As Brush = Brushes.Black, brushTextShadow As Brush = Brushes.White
   If e.RowHandle = view.FocusedRowHandle Then
      brush = Brushes.DarkBlue
      brushTextShadow = Brushes.DarkBlue
      brushText = Brushes.White
   End If

   'Fill the rectangle of the group row without the expand button
   e.Graphics.FillRectangle(brush, groupRowBounds)
   'Draw a custom expand button
   Dim iml As ImageList = imlCustomDrawImages
   e.Graphics.DrawImageUnscaled(iml.Images(IIf(view.GetRowExpanded(e.RowHandle), 1, 0)), _
     expandButtonBounds)
   'Draw the group row text
   Dim s As String = view.GetGroupRowDisplayText(e.RowHandle)
   e.Appearance.DrawString(e.Cache, s, New Rectangle(textBounds.X + 1, textBounds.Y + 1, _
textBounds.Width, textBounds.Height), brushTextShadow)
   e.Appearance.DrawString(e.Cache, s, textBounds, brushText)
   'Prevent default painting
   e.Handled = True
End Sub

Private Sub advBandedGridView1_GroupLevelStyle(ByVal sender As Object, _
ByVal e As GroupLevelStyleEventArgs) Handles advBandedGridView1.GroupLevelStyle
   ' Specify the back color for the group indent panel
   e.LevelAppearance.BackColor = Color.LemonChiffon
End Sub
