雷达点图

雷达点图 是由 RadarPointSeriesView 对象来表示的，此对象属于雷达系列视图。当需要把来自两个或多个不同系列中的点在有多个轴 (沿这些轴可以绘制数据) 的圆形网格上显示时，这种视图是有用的。注意，尽管这些图表通常都有一个圆形形状，但是也可以被显示为多边形。这是通过 RadarDiagram.DrawingStyle 属性进行控制的。

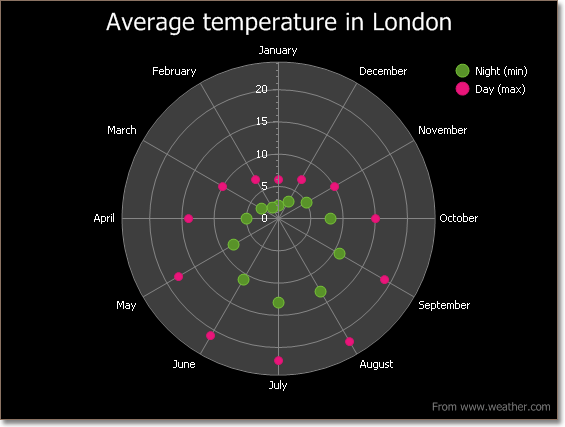

在下面的插图中显示了一个雷达点图。

下表列出了这种图表类型的主要特征。

特征	取值
系列视图类型	RadarPointSeriesView
图象类型	RadarDiagram
每个数据点的参数个数	1
每个数据点的取值个数	1

注意
要获得关于哪些图表类型可以与雷达点图组合使用的信息，请参阅组合使用不同的系列视图文档。

下面的示例演示了在运行时刻如何创建 ChartControl (拥有一个 RadarPointSeriesView 类型的系列)，设置它的常规属性，并把图表添加到窗体中。在继续本示例之前，首先要在 Visual Studio 中创建一个 Windows 窗体应用程序，并把所有必需的程序集包含到项目的“引用”列表中。

然后，把下列代码添加到 Form.Load 事件处理程序。

C#	复制代码
using System; using System.Windows.Forms; using DevExpress.XtraCharts; // ... private void Form1_Load(object sender, EventArgs e) { // Create a new chart. ChartControl RadarPointChart = new ChartControl(); // Add a radar series to it. Series series1 = new Series("Series 1", ViewType.RadarPoint); // Populate the series with points. series1.Points.Add(new SeriesPoint(0, 90)); series1.Points.Add(new SeriesPoint(90, 95)); series1.Points.Add(new SeriesPoint(180, 50)); series1.Points.Add(new SeriesPoint(270, 55)); series1.Points.Add(new SeriesPoint(0, 180)); series1.Points.Add(new SeriesPoint(90, 185)); series1.Points.Add(new SeriesPoint(180, 270)); series1.Points.Add(new SeriesPoint(270, 275)); // Add the series to the chart. RadarPointChart.Series.Add(series1); // Adjust the series options. series1.Label.Visible = false; // Flip the diagram (if necessary). ((RadarDiagram)RadarPointChart.Diagram).StartAngleInDegrees = 180; ((RadarDiagram)RadarPointChart.Diagram).RotationDirection = RadarDiagramRotationDirection.Counterclockwise; // Add a title to the chart and hide the legend. ChartTitle chartTitle1 = new ChartTitle(); chartTitle1.Text = "Radar Point Chart"; RadarPointChart.Titles.Add(chartTitle1); RadarPointChart.Legend.Visible = false; // Add the chart to the form. RadarPointChart.Dock = DockStyle.Fill; this.Controls.Add(RadarPointChart); }

C#

复制代码

using System;
using System.Windows.Forms;
using DevExpress.XtraCharts;
// ...

private void Form1_Load(object sender, EventArgs e) {
    // Create a new chart.
    ChartControl RadarPointChart = new ChartControl();

    // Add a radar series to it.
    Series series1 = new Series("Series 1", ViewType.RadarPoint);

    // Populate the series with points.
    series1.Points.Add(new SeriesPoint(0, 90));
    series1.Points.Add(new SeriesPoint(90, 95));
    series1.Points.Add(new SeriesPoint(180, 50));
    series1.Points.Add(new SeriesPoint(270, 55));
    series1.Points.Add(new SeriesPoint(0, 180));
    series1.Points.Add(new SeriesPoint(90, 185));
    series1.Points.Add(new SeriesPoint(180, 270));
    series1.Points.Add(new SeriesPoint(270, 275));

    // Add the series to the chart.
    RadarPointChart.Series.Add(series1);

    // Adjust the series options.
    series1.Label.Visible = false;

    // Flip the diagram (if necessary).
    ((RadarDiagram)RadarPointChart.Diagram).StartAngleInDegrees = 180;
    ((RadarDiagram)RadarPointChart.Diagram).RotationDirection =
        RadarDiagramRotationDirection.Counterclockwise;

    // Add a title to the chart and hide the legend.
    ChartTitle chartTitle1 = new ChartTitle();
    chartTitle1.Text = "Radar Point Chart";
    RadarPointChart.Titles.Add(chartTitle1);
    RadarPointChart.Legend.Visible = false;

    // Add the chart to the form.
    RadarPointChart.Dock = DockStyle.Fill;
    this.Controls.Add(RadarPointChart);
}

Visual Basic	复制代码
Imports System Imports System.Windows.Forms Imports DevExpress.XtraCharts ' ... Private Sub Form1_Load(ByVal sender As Object, _ ByVal e As EventArgs) Handles MyBase.Load ' Create a new chart. Dim RadarPointChart As New ChartControl() ' Add a radar series to it. Dim series1 As New Series("Series 1", ViewType.RadarPoint) ' Populate the series with points. series1.Points.Add(New SeriesPoint(0, 90)) series1.Points.Add(New SeriesPoint(90, 95)) series1.Points.Add(New SeriesPoint(180, 50)) series1.Points.Add(New SeriesPoint(270, 55)) series1.Points.Add(New SeriesPoint(0, 180)) series1.Points.Add(New SeriesPoint(90, 185)) series1.Points.Add(New SeriesPoint(180, 270)) series1.Points.Add(New SeriesPoint(270, 275)) ' Add the series to the chart. RadarPointChart.Series.Add(series1) ' Adjust the series options. series1.Label.Visible = False ' Flip the diagram (if necessary). CType(RadarPointChart.Diagram, RadarDiagram).StartAngleInDegrees = 180 CType(RadarPointChart.Diagram, RadarDiagram).RotationDirection = _ RadarDiagramRotationDirection.Counterclockwise ' Add a title to the chart and hide the legend. Dim chartTitle1 As New ChartTitle() chartTitle1.Text = "Radar Point Chart" RadarPointChart.Titles.Add(chartTitle1) RadarPointChart.Legend.Visible = False ' Add the chart to the form. RadarPointChart.Dock = DockStyle.Fill Me.Controls.Add(RadarPointChart) End Sub

Visual Basic

复制代码

Imports System
Imports System.Windows.Forms
Imports DevExpress.XtraCharts
' ...

Private Sub Form1_Load(ByVal sender As Object, _
ByVal e As EventArgs) Handles MyBase.Load
    ' Create a new chart.
    Dim RadarPointChart As New ChartControl()

    ' Add a radar series to it.
    Dim series1 As New Series("Series 1", ViewType.RadarPoint)

    ' Populate the series with points.
    series1.Points.Add(New SeriesPoint(0, 90))
    series1.Points.Add(New SeriesPoint(90, 95))
    series1.Points.Add(New SeriesPoint(180, 50))
    series1.Points.Add(New SeriesPoint(270, 55))
    series1.Points.Add(New SeriesPoint(0, 180))
    series1.Points.Add(New SeriesPoint(90, 185))
    series1.Points.Add(New SeriesPoint(180, 270))
    series1.Points.Add(New SeriesPoint(270, 275))

    ' Add the series to the chart.
    RadarPointChart.Series.Add(series1)

    ' Adjust the series options.
    series1.Label.Visible = False

    ' Flip the diagram (if necessary).
    CType(RadarPointChart.Diagram, RadarDiagram).StartAngleInDegrees = 180
    CType(RadarPointChart.Diagram, RadarDiagram).RotationDirection = _
        RadarDiagramRotationDirection.Counterclockwise

    ' Add a title to the chart and hide the legend.
    Dim chartTitle1 As New ChartTitle()
    chartTitle1.Text = "Radar Point Chart"
    RadarPointChart.Titles.Add(chartTitle1)
    RadarPointChart.Legend.Visible = False

    ' Add the chart to the form.
    RadarPointChart.Dock = DockStyle.Fill
    Me.Controls.Add(RadarPointChart)
End Sub

Show Me
