百分比堆积面积图

百分比堆积面积图 (100% 堆积面积图) 是由 FullStackedAreaSeriesView 对象来表示的，此对象属于面积系列视图。这种视图把系列显示为图象上的面积，每个数据点的取值都与所有其他对应数据点取值相堆积。在这种情况下，区域的高度始终是图表图象的全部高度 (即 1)。这种视图用于比较相同点参数的多个系列的百分比取值。

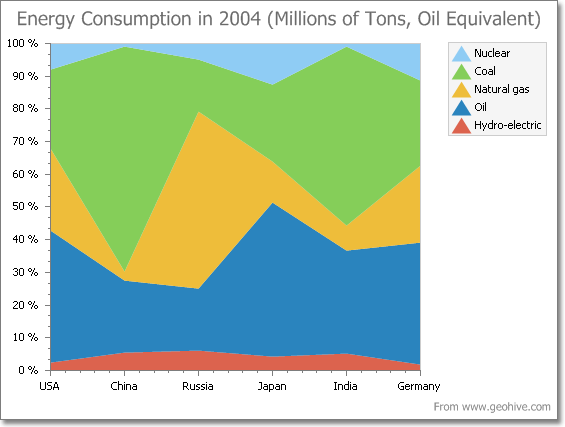

在下面的插图中显示了一个百分比堆积面积图。注意，这种图表类型基于 XYDiagram，因此可以被旋转，从而垂直地或水平地显示图表。

注意
百分比堆积面积图可以显示包含正值或负值数据点的系列。但是，有正值的系列只能与其他包含正值的系列相堆积；有负值的系列与其他包含负值的系列相堆积。注意，如果系列同时包含正值和负值数据点，那么它被作为有正值的系列进行处理，而它的所有负值都被视为零。

注意

百分比堆积面积图可以显示包含正值或负值数据点的系列。但是，有正值的系列只能与其他包含正值的系列相堆积；有负值的系列与其他包含负值的系列相堆积。

注意，如果系列同时包含正值和负值数据点，那么它被作为有正值的系列进行处理，而它的所有负值都被视为零。

下表列出了这种图表类型的主要特征。

特征	取值
系列视图类型	FullStackedAreaSeriesView
图象类型	2D- XYDiagram
每个数据点的参数个数	1
每个数据点的取值个数	1

注意
要获得关于哪些图表类型可以与百分比堆积面积图组合使用的信息，请参阅组合使用不同的系列视图文档。

下面的示例演示了在运行时刻如何创建 ChartControl (拥有两个 FullStackedAreaSeriesView 类型的系列)，并把图表添加到窗体中。在继续本示例之前，首先要在 Visual Studio 中创建一个 Windows 窗体应用程序，并把所有必需的程序集包含到项目的“引用”列表中。

然后，把下列代码添加到 Form.Load 事件处理程序。

C#	复制代码
using DevExpress.XtraCharts; // ... private void Form1_Load(object sender, EventArgs e) { // Create a new chart. ChartControl FullStackedAreaChart = new ChartControl(); // Create two full-stacked area series. Series series1 = new Series("Series 1", ViewType.FullStackedArea); Series series2 = new Series("Series 2", ViewType.FullStackedArea); // Add points to them. series1.Points.Add(new SeriesPoint(1, 10)); series1.Points.Add(new SeriesPoint(2, 12)); series1.Points.Add(new SeriesPoint(3, 14)); series1.Points.Add(new SeriesPoint(4, 17)); series2.Points.Add(new SeriesPoint(1, 15)); series2.Points.Add(new SeriesPoint(2, 18)); series2.Points.Add(new SeriesPoint(3, 25)); series2.Points.Add(new SeriesPoint(4, 33)); // Add both series to the chart. FullStackedAreaChart.Series.AddRange(new Series[] { series1, series2 }); // Set the numerical argument scale types for the series, // as it is qualitative, by default. series1.ArgumentScaleType = ScaleType.Numerical; series2.ArgumentScaleType = ScaleType.Numerical; // Access the view-type-specific options of the series. ((FullStackedAreaSeriesView)series1.View).Transparency = 50; ((FullStackedAreaSeriesView)series2.View).Transparency = 50; // Access the type-specific options of the diagram. ((XYDiagram)FullStackedAreaChart.Diagram).EnableAxisXZooming = true; // Hide the legend (if necessary). FullStackedAreaChart.Legend.Visible = false; // Add the chart to the form. FullStackedAreaChart.Dock = DockStyle.Fill; this.Controls.Add(FullStackedAreaChart); }

C#

复制代码

using DevExpress.XtraCharts;
// ...

private void Form1_Load(object sender, EventArgs e) {
    // Create a new chart.
    ChartControl FullStackedAreaChart = new ChartControl();

    // Create two full-stacked area series.
    Series series1 = new Series("Series 1", ViewType.FullStackedArea);
    Series series2 = new Series("Series 2", ViewType.FullStackedArea);

    // Add points to them.
    series1.Points.Add(new SeriesPoint(1, 10));
    series1.Points.Add(new SeriesPoint(2, 12));
    series1.Points.Add(new SeriesPoint(3, 14));
    series1.Points.Add(new SeriesPoint(4, 17));

    series2.Points.Add(new SeriesPoint(1, 15));
    series2.Points.Add(new SeriesPoint(2, 18));
    series2.Points.Add(new SeriesPoint(3, 25));
    series2.Points.Add(new SeriesPoint(4, 33));

    // Add both series to the chart.
    FullStackedAreaChart.Series.AddRange(new Series[] { series1, series2 });

    // Set the numerical argument scale types for the series,
    // as it is qualitative, by default.
    series1.ArgumentScaleType = ScaleType.Numerical;
    series2.ArgumentScaleType = ScaleType.Numerical;

    // Access the view-type-specific options of the series.
    ((FullStackedAreaSeriesView)series1.View).Transparency = 50;
    ((FullStackedAreaSeriesView)series2.View).Transparency = 50;

    // Access the type-specific options of the diagram.
    ((XYDiagram)FullStackedAreaChart.Diagram).EnableAxisXZooming = true;

    // Hide the legend (if necessary).
    FullStackedAreaChart.Legend.Visible = false;

    // Add the chart to the form.
    FullStackedAreaChart.Dock = DockStyle.Fill;
    this.Controls.Add(FullStackedAreaChart);
}

Visual Basic	复制代码
Imports DevExpress.XtraCharts ' ... Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) _ Handles MyBase.Load ' Create a new chart. Dim FullStackedAreaChart As New ChartControl() ' Create two full-stacked area series. Dim series1 As New Series("Series 1", ViewType.FullStackedArea) Dim series2 As New Series("Series 2", ViewType.FullStackedArea) ' Add points to them. series1.Points.Add(New SeriesPoint(1, 10)) series1.Points.Add(New SeriesPoint(2, 12)) series1.Points.Add(New SeriesPoint(3, 14)) series1.Points.Add(New SeriesPoint(4, 17)) series2.Points.Add(New SeriesPoint(1, 15)) series2.Points.Add(New SeriesPoint(2, 18)) series2.Points.Add(New SeriesPoint(3, 25)) series2.Points.Add(New SeriesPoint(4, 33)) ' Add both series to the chart. FullStackedAreaChart.Series.AddRange(New Series() { series1, series2 }) ' Set the numerical argument scale types for the series, ' as it is qualitative, by default. series1.ArgumentScaleType = ScaleType.Numerical series2.ArgumentScaleType = ScaleType.Numerical ' Access the view-type-specific options of the series. CType(series1.View, FullStackedAreaSeriesView).Transparency = 50 CType(series2.View, FullStackedAreaSeriesView).Transparency = 50 ' Access the type-specific options of the diagram. CType(FullStackedAreaChart.Diagram, XYDiagram).EnableAxisXZooming = True ' Hide the legend (if necessary). FullStackedAreaChart.Legend.Visible = False ' Add the chart to the form. FullStackedAreaChart.Dock = DockStyle.Fill Me.Controls.Add(FullStackedAreaChart) End Sub

Visual Basic

复制代码

Imports DevExpress.XtraCharts
' ...

Private Sub Form1_Load(ByVal sender As System.Object, ByVal e As System.EventArgs) _
Handles MyBase.Load
    ' Create a new chart.
    Dim FullStackedAreaChart As New ChartControl()

    ' Create two full-stacked area series.
    Dim series1 As New Series("Series 1", ViewType.FullStackedArea)
    Dim series2 As New Series("Series 2", ViewType.FullStackedArea)

    ' Add points to them.
    series1.Points.Add(New SeriesPoint(1, 10))
    series1.Points.Add(New SeriesPoint(2, 12))
    series1.Points.Add(New SeriesPoint(3, 14))
    series1.Points.Add(New SeriesPoint(4, 17))

    series2.Points.Add(New SeriesPoint(1, 15))
    series2.Points.Add(New SeriesPoint(2, 18))
    series2.Points.Add(New SeriesPoint(3, 25))
    series2.Points.Add(New SeriesPoint(4, 33))

    ' Add both series to the chart.
    FullStackedAreaChart.Series.AddRange(New Series() { series1, series2 })

    ' Set the numerical argument scale types for the series,
    ' as it is qualitative, by default.
    series1.ArgumentScaleType = ScaleType.Numerical
    series2.ArgumentScaleType = ScaleType.Numerical

    ' Access the view-type-specific options of the series.
    CType(series1.View, FullStackedAreaSeriesView).Transparency = 50
    CType(series2.View, FullStackedAreaSeriesView).Transparency = 50

    ' Access the type-specific options of the diagram.
    CType(FullStackedAreaChart.Diagram, XYDiagram).EnableAxisXZooming = True

    ' Hide the legend (if necessary).
    FullStackedAreaChart.Legend.Visible = False

    ' Add the chart to the form.
    FullStackedAreaChart.Dock = DockStyle.Fill
    Me.Controls.Add(FullStackedAreaChart)
End Sub

Show Me
在 DevExpress Code Central 数据库中可以找到完整的示例项目，网址是 http://www.devexpress.com/example=E1207。取决于目标平台类型 (ASP.NET、WinForms 等)，可以在线运行本示例，或者下载自动可执行的示例。
