本示例演示了在运行时刻如何创建 计算字段,并绑定到控件的 XRControl.Text 属性。
C# | 复制代码 |
---|---|
using System; using System.Windows.Forms; using DevExpress.XtraReports.UI; // ... private void button1_Click(object sender, EventArgs e) { // Create a report. XtraReport1 report = new XtraReport1(); // Create a calculated field, // and add it to the report's collection. CalculatedField calcField = new CalculatedField(); report.CalculatedFields.Add(calcField); // Define its properties. calcField.DataSource = report.DataSource; calcField.DataMember = report.DataMember; calcField.FieldType = FieldType.Double; calcField.DisplayName = "A Calculated Field"; calcField.Name = "myField"; calcField.Expression = "[UnitPrice] * [Quantity]"; // Bind a label's Text property to the calculated field. report.FindControl("xrlabel2", true).DataBindings.Add("Text", null, "Order Details.myField"); // Display the report. report.ShowPreview(); } |
Visual Basic | 复制代码 |
---|---|
Imports System Imports System.Windows.Forms Imports DevExpress.XtraReports.UI ' ... Private Sub button1_Click(ByVal sender As Object, ByVal e As EventArgs) Handles button1.Click ' Create a report. Dim report As New XtraReport1() ' Create a calculated field, ' and add it to the report's collection. Dim calcField As New CalculatedField() report.CalculatedFields.Add(calcField) ' Define its properties. calcField.DataSource = report.DataSource calcField.DataMember = report.DataMember calcField.FieldType = FieldType.Double calcField.DisplayName = "A Calculated Field" calcField.Name = "myField" calcField.Expression = "[UnitPrice] * [Quantity]" ' Bind a label's Text property to the calculated field. report.FindControl("xrlabel2", True).DataBindings.Add("Text", Nothing, "Order Details.myField") ' Display the report. report.ShowPreview() End Sub |

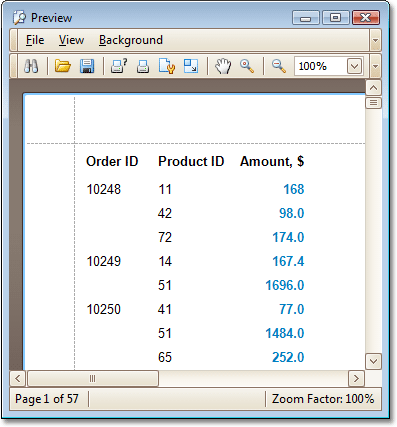

在下面的插图中显示了结果。
Show Me |
---|
在 DevExpress Code Central 数据库中可以找到完整的示例项目,网址是 http://www.devexpress.com/example=E1489。 取决于目标平台类型 (ASP.NET、WinForms 等),可以在线运行本示例,或者下载自动可执行的示例。 |
